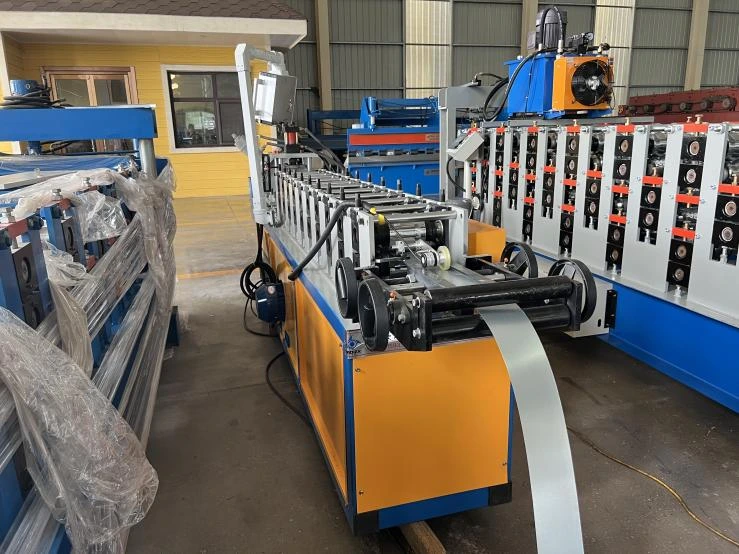

Angle Keel Roll Forming Machine
The Angle Keel Roll Forming Machine efficiently shapes steel strips into precise angle keel profiles with consistent dimensions. It supports continuous production, reducing manual labor while ensuring reliable performance for construction framing applications.
2. Roller surfaces polish, hard plating dealing
▪️Hydraulic Cutting Device: 1. Controlled by oil pump : Automatic Non-stop cutting as target products length
2. Cutting trolley: Uses linear guide rails and servo motor driven tracking. Cutting does not stop.
▪️Hydraulic Oil Pump: Hydraulic oil: 46#; Oil add capacity: oil add 3/4 of box capacity; Oil pressure: 8-10 MPa
▪️Computer Control System: Computer is used to control length and quantity. Machine will automatically cut to length and stop when required quantity is achieved.
▪️Receiving table: Support roller to transmit pieces.
Technical parameters:
|
NO |
Type |
Specification |
|
|
1 |
Raw material |
Type |
Q195-235 Galvanized |
|
Thickness |
0.3-0.7mm |
||
|
2 |
Product |
Feeding width |
As drawing |
|
Effective width |
As drawing |
||
|
Length fixed-length accuracy |
±2mm |
||
|
3 |
Decoiler |
Operation |
Manual |
|
Weight capacit |
3 Tons |
||
|
4 |
Main body |
Roller station |
9 rows |
|
Diameter of shaft |
60mm |
||
|
Dotted roller |
With dots L: 80mm |
||
|
Shaft material |
High quality 45# steel quenching treatment HRC55-58 |
||
|
Roller material |
Cr12, HRC 58-60 |
||
|
Maine Frame |
Square pipe welding |
||
|
Middle plate |
16mm |
||
|
Working speed |
30-36m/min |
||
|
Sizes |
About 4*0.8*1.3m |
||
|
Weight |
About 1.5-2Ton |
||
|
5 |
Cutter |
Cutting way |
Hydraulic non-stop cutting |
|
Cutter material |
Cr12 , HRC 58-60 |
||
|
6 |
Power |
Driving way |
1’’ Chain drive |
|
Main motor |
4 KW |
||
|
Pump motor for cutter |
3KW |
||
|
Voltage |
380V/50HZ, 3 phase |
||
|
7 |
Control box |
Types |
PLC control system |
|
PLC brand
|
The computer uses Delta PLC, Delta touch screen |
||
|
Language |
Chinese and English |
||
